From the fresh appearance to high quality tradition, The MOULDTEC series 4-side Moulder is designed with excellence in mind. Now, look into its extraordinary features. The MOULDTEC features all new appearance, high accuracy cutting, user-friendly operation interface and precision constructed throughout.
The MOULDTEC is not only a newly designed moulder, but also provides the best possible performance you've come to expect.
FEATURE

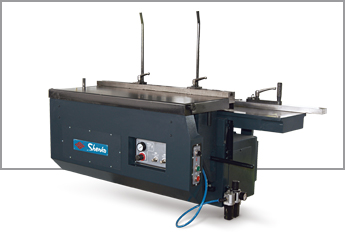

Automatic Feeding Device (Optional)
This device can feed the workpiece into the machine for processing instead of hand feed. It can increase the production and keep the operator from danger. The most important is the operator has enough time to choose the better surface to process and get the perfect finish.

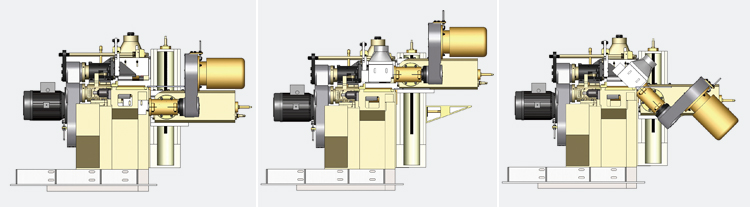

Universal Spindle ( Optional )
Angled Vertical Spindle ±20° (Optional)

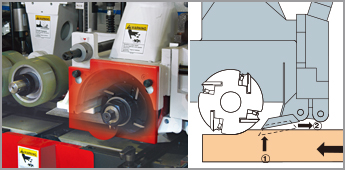

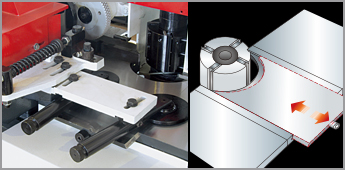

Front And Rear Pressure Device for Upper Spindle
Front And Rear Pressure Device for Upper Spindle
Driven Table Roller
Driven table rollers reduce table wear out and guarantee the feed through of workpiece without getting stuck.
Drive Infeed Table Roller
The drive infeed table roller provides maximum smoothness of workpiece feeding for all types of wood material, regardless of highly moisture or extra hard materials.
Inverter Controlled Feed System
Feed speed via inverter provides positive feed. This machine can adjust the feeding speed according to the actual need. The speed range is 6-36 M/min.
Spindle
The spindle is supported by two pair of bearing to ensure accurate performance under high speed rotation.
SPECIFICATION

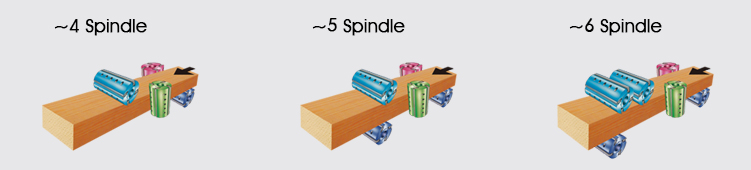

Model
MOULDTEC / 4
MOULDTEC / 5
MOULDTEC / 6
Working width min.~max.
15~230 mm
15~230 mm
15~230 mm
Working height min.~max.
10~120 mm
10~120 mm
10~120 mm
Infeed table length
1.6 M
1.6 M
1.6 M
Motor horse power
7.5 HP/10 HP
7.5 HP/10 HP
7.5 HP/10 HP
Feeding power
5 HP
5 HP
5 HP
Feeding speed
6~36 M/min
6~36 M/min
6~36 M/min
Diameter of spindle
40 mm
40 mm
40 mm
Spindle speed
6,000 RPM
6,000 RPM
6,000 RPM
Tool diameter of first bottom spindle
100~160 mm
100~160 mm
100~160 mm
Tool diameter of vertical spindle
100~180 mm
100~180 mm
100~180 mm
Tool diameter of horizontal spindle
100~180 mm
100~180 mm
100~180 mm
Adjustment range of straightening table and edge-joint
10 mm
10 mm
10 mm
Adjustment of vertical spindle
50 mm
50 mm
50 mm
Adjustment of horizontal spindle
30 mm
30 mm
30 mm
Diameter of feeding roller
140 mm x ø35 mm
140 mm x ø35 mm
140 mm x ø35 mm
Width of steel feed roller
25 mm
25 mm
25 mm
Width of steel feed rollers opposite left spindle
20 mm
20 mm
20 mm
Width of rubber feed roller
50 mm
50 mm
50 mm
Max. cutting capacity for 1st bottom spindle
10 mm
10 mm
10 mm
Max. cutting capacity for 2st right vertical spindle
10 mm
10 mm
10 mm
• Hard chrome plated table.
• Specifications and design features are subject to change without notice.
