- With SHENKO'S broad range of 4-side moulder, you can make sure any part will be produced precisely and fast. No matter how complex it may be. SHENKO'S 4-side moulders are rigorously engineered, built and tested for maximum dependability of operations year after year, that bring you top quality, structural stability and high accuracy. Profitable operations assured for years. We have outstanding moulding technology experience-especial background that is at your service to help achieve maximum productivity at lower production cost.
|
|
|
|
FEATURE |
|
| |

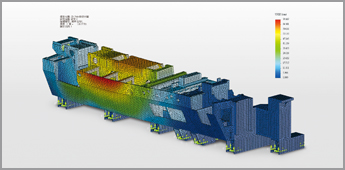

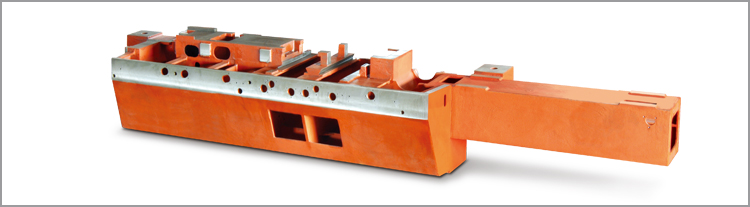

01- Machine Frame
The machine frame is welded from rigid thick gauge steel plate, ruggedly constructed and precision machined for superior cutting accuracy and long service life.
01- Machine Frame
The machine frame is welded from rigid thick gauge steel plate, ruggedly constructed and precision machined for superior cutting accuracy and long service life.
02- Centralized Pneumatic Adjustment
Pneumatic adjustment gauges are located in the front of machine, easy to operate.

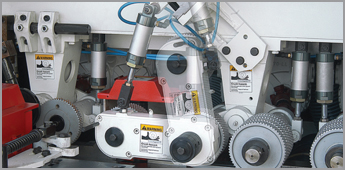

03- Auxiliary Rollers for Short Wood
It shortens distance between two feed rollers. The work piece can behold firmly against the fence to avoid the work piece jumping that may affect the quality of product. This device is movable for convenient tool replacement on vertical spindle.

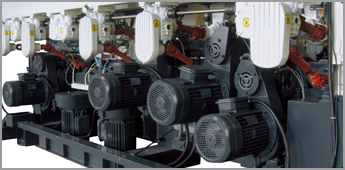

04- Feeding System
This machine utilizes warm gear reducer and universal joint shaft to feed the work piece through smoothly.
05- Inverter Controlled Feed System
Feeding speed via inverter provide positive feed. This machine allow for adjusting feeding speed according to the actual need. The speed range is 6-36 M/min.

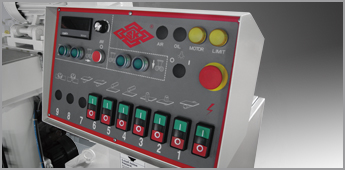

06- Control Panel
All of the machine controls are centralized in a control panel. Each push button is clearly identified for easy to operate.
07- Out Feed Table
The out feed table can be adjusted for desire chip removal. (Not available for Mouldtec and SKU series.)
08- Mobile Jog Panel Box
It is convenient for user to take walking around the machine while setting up.
09- Digital Indicator
Fast and accurate cutter head setup is achieved through the application of digital readout.

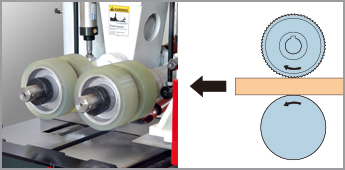

10- Driven Table Roller
Fast and accurate cutter head setup is achieved through the application of digital readout.
11- Front and Rear Pressure Device for Upper Spindle
The machine frame is welded from rigid thick gauge steel plate, ruggedly constructed and precision machined for superior cutting accuracy and long service life.
12- Front and Rear Pressure Device for Upper Spindle
This part can adjust according to the diameter of tool. It provides support for work piece while cutting processing and ensure accurate cutting performance.
13- Drive Infeed Table Roller
The drive infeed table roller provides maximum smoothness of work piece feeding for all types of wood material, regardless of highly moisture or extra hard materials.

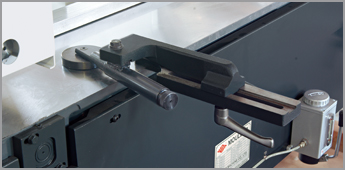

14- Side Pressure Wheel at Infeed Table
The side pressure wheel is equipped at the infeed table. It presses wood firmly to enable the wood moves smoothly along the fence. This assures accurate cutting.
|
| |
|
|
|
