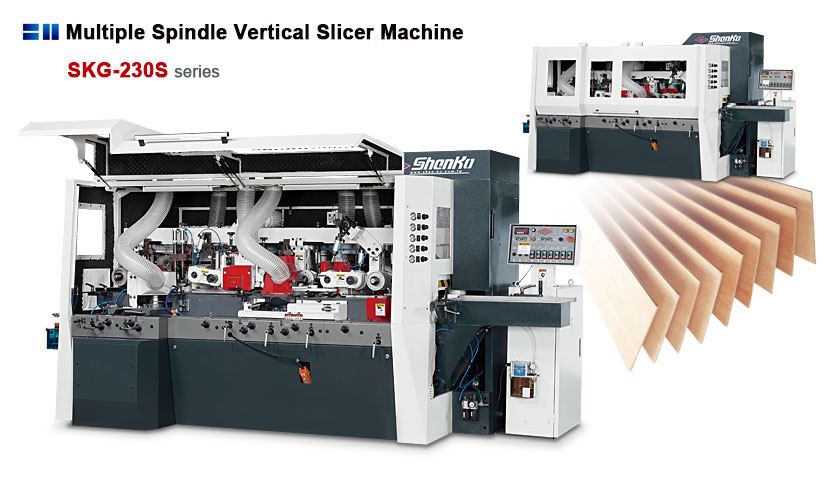

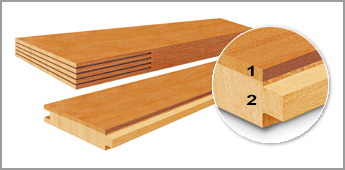

  • The SKG-230S series not only combines the features of traditional 4-side moulder, but also provides slicing function. The series is designed for saving machining time while greatly upgrading throughput. The SKG-230S is a special purpose machine with cross cut and slicing function. It's applicable for composite parquet, Venetian blind, window curtain and air-tight window, etc.

FEATURE

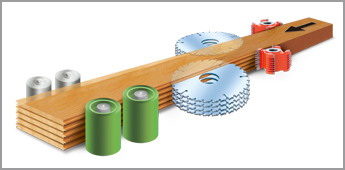

Motorize Out Feed Vertical Roller Device (Optional)

Mounted at the end of out feed table to provide Finish product feeding smoothly after splitting.

Scoring Sawblades

The machine is available to equip with additional scoring sawblades for slicing. The scoring blades may avoid tearing problem while upgrading slicing speed.

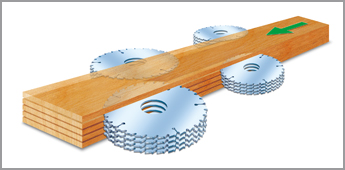

Multiple Sheets Slicing

The two vertical spindles can be fitted with multiple sawblades for producing multiple sheets at a time.

Sawblade Cleaning Device

The cleaning solvent reservoir provides solvent flushing together with outside cooling air to the blades for cleaning off the dusts existed on the blades. It also helps to reduce heat generation on the blades. The cleaning device permits time setting as desired.

Sawblade Cooling System

An air cooling system is applied for cooling blades during slicing, that reduces blades heat generation. A combination of cooling through spindle and outside air cooling for blades feature excellent cooling effect. The specially designed air cooling system not only greatly extends blades life but also ensures high cutting accuracy.

  SPECIFICATION

MODEL
SKG-230S
Working width min.~max. 60~180 mm
Product thickness range 2~20 mm
Max. sheets of slicing Max. 5 sheets
Spindle motor 7.5 HP~10 HP
Scoring sawblade motor 10 HP (Opt. 15 HP)
Slicing blade motor 20 HP (Opt. 30HP, 40HP)
Feed drive motor 5 HP
Feed speed 4~24 M/min
Spindle speed 6,000 RPM
Scoring blade spindle speed 3000 RPM
Slicing blade spindle speed 3000 RPM (Inverter control 2800~6000 RPM Optional)
Infeed table length 1.2 M



• Frequency inverter control for variable speed change. Feed speed display.

• Centralized lubrication system for spindle bearings.

• Slicing spindle running is transmitted by timing belt without slipping problem.

• Pneumatic loaded pressure device assures maximum stability during slicing.

• A combination of cooling through spindle and outside air cooling for blades, assuring outstanding cooling effect.

• Hard chrome plated table.

• Specifications and design features are subject to change without notice.

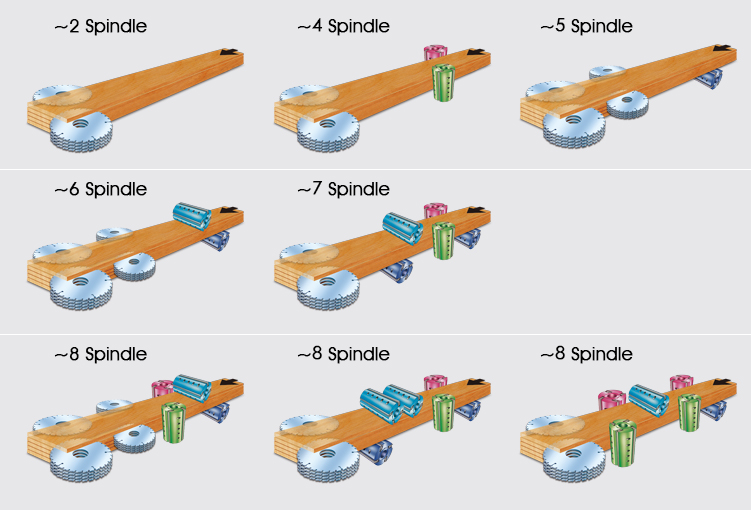

  SPINDLE ARRANGEMENT FIGURES
