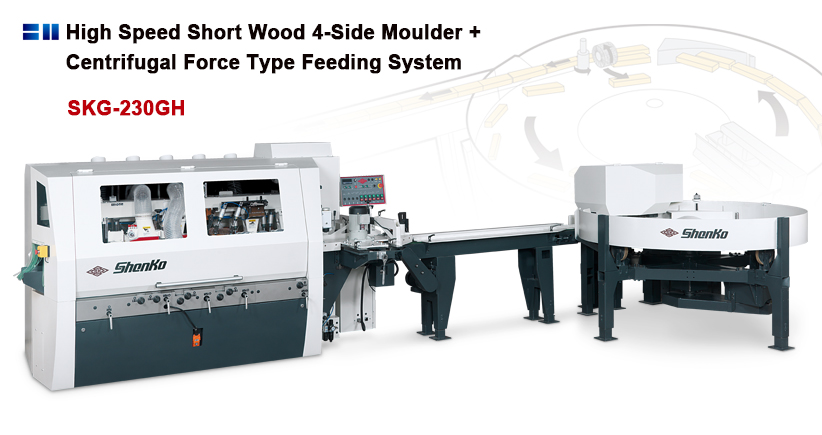

  • The SKG-230GH series is designed and engineered for great saving for your wood cost. The short wood come from other machines are reusable on the SKG-230GH series. With its high speed feed system, you not only save cost of wood waste, but also get high efficiency production. It's a highly productive series you've come to expect.

FEATURE


Centrifugal Force Type Feeding System (Optional)

• For saving manual indeed of wood.

• Reduce machine loss (Wood feed without touch between pieces results in loss of machine).

• Increase efficiency. Manual feed speed can reach only 30 M/min. With the optional feeding system feed speed may increase to 60 M/min.

Centrifugal Force Type Feeding System : AT-11

• Timer Length : 150-450 mm

• Max. Timber width : 20-100 mm

• Max. Timber thickness : 20-100 mm

• Circle Diameter : 2.1 M

• Feeding Motor : 3 HP

• Block Motor : 1/2 HP x 3

• Feeding Speed : 10-60 M/min

Min. Working Length 150 mm

Automatic Feeding for Short Stock.

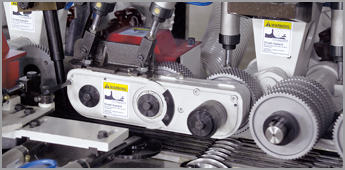

Pneumatic Element for Left Spindle

Pneumatic element for left spindle. Reduced distance between feed rollers.

Groove Guide Table

Moulder machine equip groove guide table can process short timber or twisted timber.

• Feeding speed 10-80 M/min

• Working width 35-150 mm.

• Variable feed speed controlled by frequency inverter. Feed speed display.

Multiple Rip Saw Blades (Optional)

• The multiple rip saw blades are available only for 6-spindle model.

• The saw blades are mounted on the 5th top spindle.

SPECIFICATION

MODEL
SKG-230GH
Working width min.~max. 35~230 mm
Working height min.~max. 10~120 mm
Min. working length 150 mm
Straightening table length (Hard chrome plated) 1.2 M
Spindle power 10 HP & 15HP
Feeding power 7.5 HP
Feeding speed 10~60 M/min
Diameter of spindle 40 mm (Opt. 50mm)
Speed of spindle 7,200 RPM
Diameter of cutter for 1st bottom spindle 125~160 mm
Diameter of cutter for vertical spindle 125~180 mm
Diameter of cutter for horizontal spindle 125~180 mm
Adjustment range of straightening table 10 mm
Adjustment of vertical spindle 50 mm
Adjustment of horizontal spindle 30 mm
Diameter of feed roller 140 x ø35mm
Width of feed roller 25 mm
Width of feed roller opposite to left spindle 20 mm
Width of rubber feed roller 50 mm
Max. cutting capacity for 1st bottom spindle 10 mm
Max. cutting capacity for 2st right vertical spindle 10 mm



‧ Hard chrome plated table.

‧ Pneumatic pressure device for top spindle.

‧ Pneumatic pressure device for left spindle.

‧ Groove table.

‧ Short wood automatic feeding device.

‧ Belt type feeder.

‧ Specifications and design features are subject to change without notice.

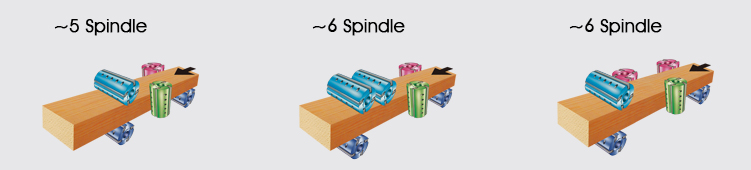

SPINDLE ARRANGEMENT FIGURES
