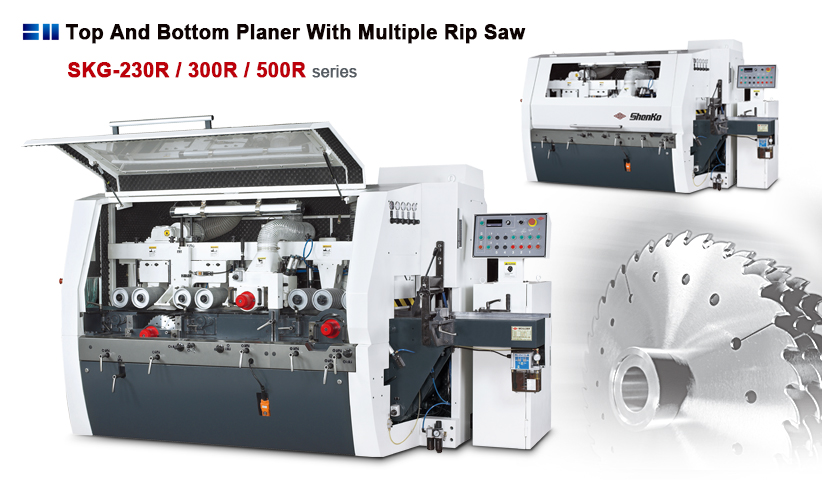

Top And Bottom Planer With Multiple Rip Saw
  • The series of machine looks like a 4-side moulder, but it combines double surface planer with multiple rip saw in one. The series will reduce machining processes, while increasing operational convenience. Other benefits are shortening production time and saving time and labor costs.

FEATURE


Optional Equipment

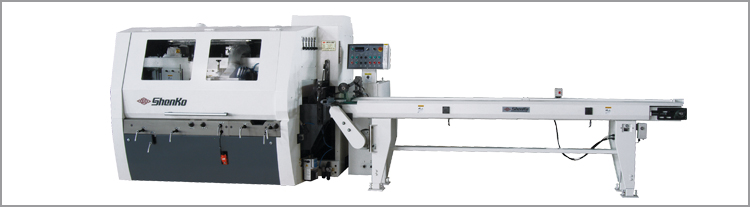

This series is available to equip with a belt type infeed conveyor for convenient wood infeed. By adding the infeed conveyor the machine is ideal for operating on a production line to meet your production planning requirement.

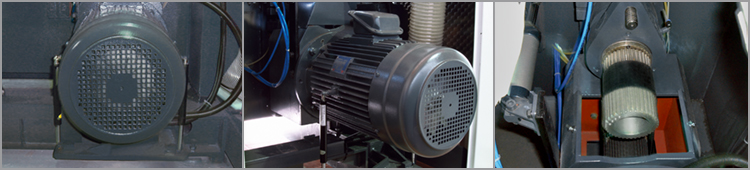

Eliminate the use of conventional V-belt or flat belt, the rip saw arbor employs timing belt combined with timing pulley. This design will minimize slip between the belt and pulley. In addition, the rip saw motor is supported by two air bars at right and left side. It not only increases stability for saw arbor running, but also ensures superior ripping quality.

External End Bearing Support on Horizontal Spindle

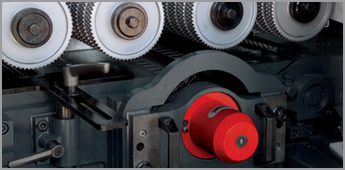

The external end of the horizontal spindle is firmly supported, which upgrades machining performance and product surface finish.

External End Bearing Support on Horizontal Spindle

The external end of the horizontal spindle is firmly supported, which upgrades machining performance and product surface finish.

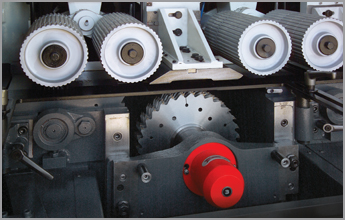

Powerful upper pressure plate holds wood stably. 4 sets steel feed rollers combined with two sets table rollers provide extra powerful feeding force that assures extremely smooth feed during ripping operation. A trimming sawblade is equipped at the inner side of the saw arbor to trim the inner side of wood. It provides consistent width and thickness of product after ripping. The external end of saw arbor is supported by bearing for added stability of running and accurate size of cut.


SPECIFICATION

MODEL
SKG-230R
SKG-300R
SKG-350R
Working width min.~max. 230 mm 300 mm 350 mm
Maximum thickness of ripping 75 mm 75 mm 75 mm
Feed table length 1.2 M 1.2 M 1.2 M
1st bottom spindle motor 10 HP 10 HP 10 HP
1st top spindle motor 15 HP 15 HP 20 HP
Sawblade spindle motor 30 HP 40 HP 40 HP
Feeding power 5 HP 7.5 HP 7.5 HP
Elevation motor 1 HP 1 HP 1 HP
Feeding speed 6~36 M/min 6~36 M/min 6~36 M/min
Diameter of spindle 50 mm 50 mm 50 mm
Diameter of rip saw spindle 50 mm 50 mm 50 mm
Speed of 1st bottom horizontal spindle 6,000 RPM 6,000 RPM 6,000 RPM
Speed of 1st top horizontal spindle 6,000 RPM 6,000 RPM 6,000 RPM
Speed of sawblade spindle 3,200 RPM 3,200 RPM 3,200 RPM
Keyway width on sawblade spindle 10 mm x 2 10 mm x 2 10 mm x 2
Diameter of cutter for 1st bottom spindle 125-160 mm 125-160 mm 125-160 mm
Diameter of cutter for 1st top spindle 125-180 mm 125-180 mm 125-182 mm
Maximum diameter of sawblade ø305 mm ø305 mm ø305 mm
Adjustment range of straightening table 10 mm 10 mm 10 mm
Adjustment range of horizontal spindle 30 mm 30 mm 30 mm
Diameter of steel feed roller 140 x ø35 mm 140 x ø35 mm 140 x ø35 mm
Width of steel infeed roller 25 mm 25 mm 25 mm
Width of steel outfeed roller 50 mm 50 mm 50 mm
Max. cutting capacity for 1st bottom spindle 10 mm 10 mm 10 mm



• Hard chrome plated table.

• Bearing support at external end of spindle.

• Anti-kickback device.

• Air loaded pressure device for top spindle.

• Specifications and design features are subject to change without notice.

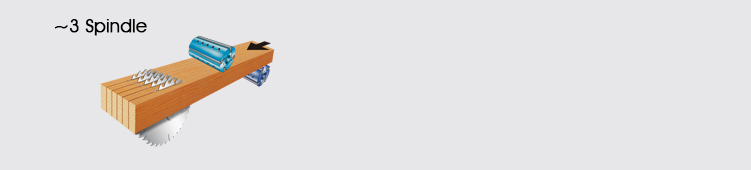

SPINDLE ARRANGEMENT FIGURES
