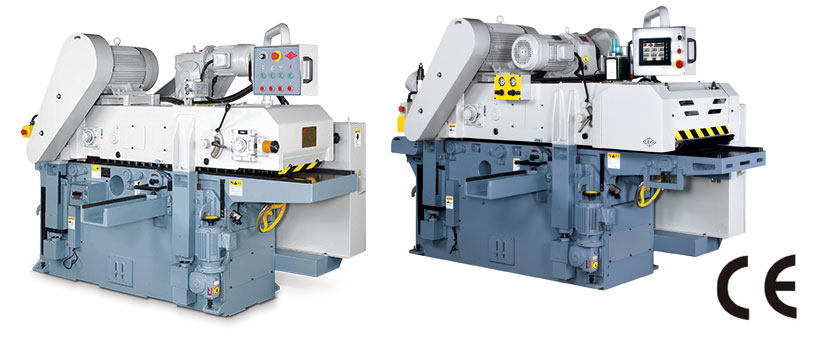

FEATURE


Feed Speed: 10-40M/min

The high speed double side planer employs high efficiency gear-drive speed reducer. It is ideal for longtime running and features better heat dissipation capability. This combined with the use of high speed heavy duty chain for feeding reduce noise during high speed running, while achieving stable and smooth feeding effect.

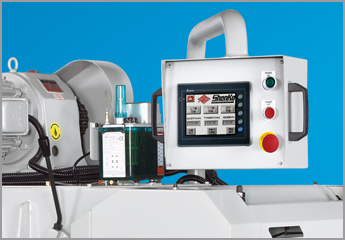

The Moveable Control Box

The movable control box allows for more convenient and efficient setting and troubleshooting. All instructions on the control panel are easy to identify and understand for operational convenience. When cutter head is running, the mechanism raising and lowering motions can be set at prohibited condition for protecting operator's safety.

Conveying Caterpillar Chains Tension Auto-Adjustment Device.

This machine equip conveying caterpillar chains tension auto-adjustment device. It avoid damage of chains from tension tightness is not enough while in processing.

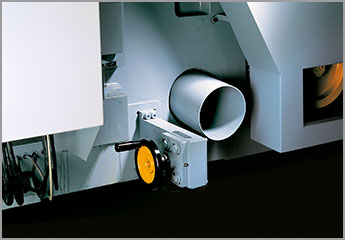

The Belt Tension Adjustment Device

The belt tension adjustment device locates under the bottom cutter block which makes belt tension easily to check and adjust. It is also more convenient for operator to take belts off and put belts back on when the bottom cutter block need to replace the cutting tool.

The Bottom Cutter Block Support

The bottom cutter block can be pulled out easily and stay on the support. It is convenient for operator to replace the cutting tool.

Frequency Inverter

The feed speed is controlled by a high performance frequency inverter, permitting for variable speed adjustment to suit all type of wood material.

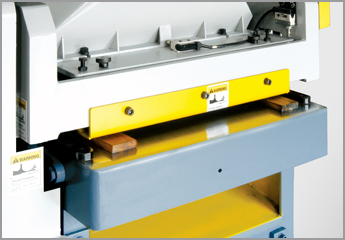

The Front Pressure Plate

The specially designed front and rear pressure plates for top cutter head hold wood firmly that eliminates the wave marking problem caused by uneven pressure that may affect cutting quality. Besides, when simultaneously feeding wood with varied thickness, the front pressure plate provides extra stable pressure to hold wood (see figure). Chips deposit at this position is also eliminated.

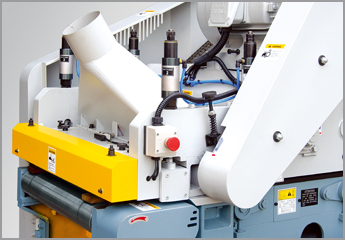

A Safety Switch Starting When Replacing Cutter Head

A safety switch is provided for protection during replacing the top cutter head. Even the top cutter head start switch is pressed, it does not run. This safety switch will prevent danger resulted from accidental starting when replacing cutter head. When the last piece of wood is exist at the out feed port, if operator carelessly presses the elevation switch, this will cause squeeze on wood resulting in the machine damage. To eliminate such problem, an elevation safety switch is provided on the out feed port for protecting the operator and the machine.

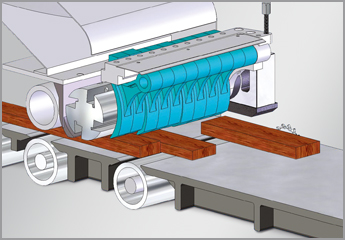

Infeed Table

The high speed double side planer is designed with additional feed roller above the infeed table that facilitates wood infeed. In addition, driven roller is equipped in the infeed table. The combination of upper and lower infeed roller provide powerful, high speed and smooth feeding even for moisturized or warped wood.

The Outfeed Mechanism

The out feed mechanism employs air cylinder loading to upgrade machining stability. In addition, the machine is also equipped with auxiliary out feed roller and rear out feed driven roller, providing fast out feed of wood without jamming. Upon request, a belt conveyor is available (optional) to connect to the out feed end for online with the production line.

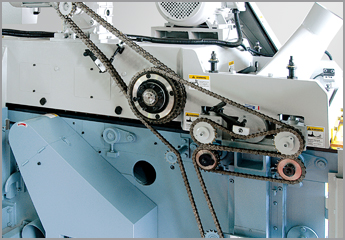

Chain Feeding System

The powerful feeding through system is transported by chains. It makes perfect finish quality under this system and feed through without jamming. This machine also equip anti-overload device to protect the feeding system from damage when work piece jam in machine.


  OPTIONAL


Straight Cutterhead (standard)

Spiral Cutterhead (optional)

Heary Daty Spiral Cutterhead (optional)

Linear Type Spiral Cutterhead (optional)

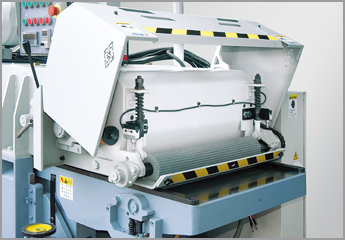

Short Wood Cutting Device.

When a short wood cutting device is equipped, the machine can cut short wood up to 200mm.

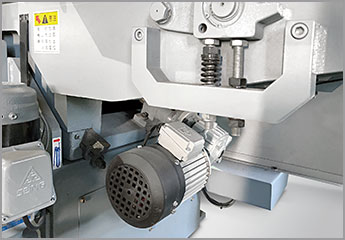

Air cylinder Loaded Upper Pressure Device, Upper Auxiliary Out feed Roller and Lower Out feed Driven Roller.

Air cylinder Loaded Upper Pressure Device, Upper Auxiliary Out feed Roller and Lower Out feed Driven Roller. The out feed mechanism employs air cylinder loaded upper pressure device to upgrade machining stability. In addition, the machine is also equipped with auxiliary out feed roller and rear out feed driven roller, providing fast out feed of wood without jamming.
(Optional for models SK-450/ SK-600G/ SK-650G)

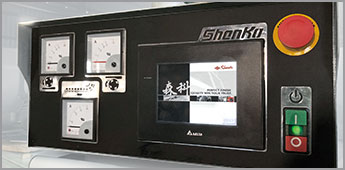

HMI Touch Screen Control Box.

By touch screen operating machinery, and displays the feeding speed and the thickness of the work, also could memory the size of the 50 group work items.

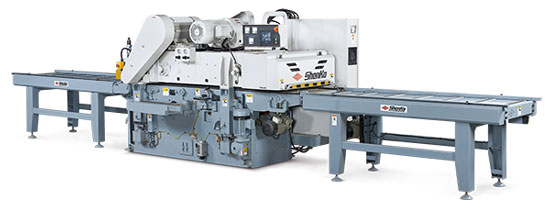

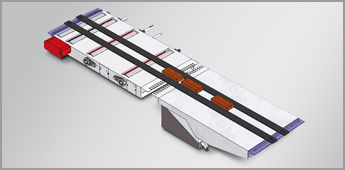

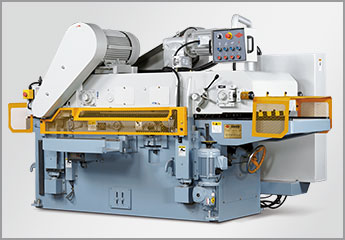

Infeed Conveyor

• Feed speed: 10-40m/min.

• Feed speed is controlled by a frequency inverter. It can be online with the feed system of the machine for adjusting feed speed synchronously. When required, individual speed adjustment is allowed.

• Easy to operate and feed.

• It’s convenient for online with for production line.

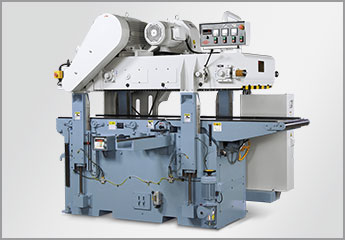

Outfeed Conveyor

• Feed speed: 10-40m/min.

• Feed speed is controlled by a frequency inverter. It can be online with the feed system of the machine for adjusting out feed speed.

• It’s equipped with air loaded pressure roller to ensure smooth out feed of long and short wood.

• Height of the pressure roller can be adjusted according to out feed condition.

• Easy to operate and feed.

• It’s convenient for online with a production line.
